Classifications
MFDS Device – Class Ⅲ Laser Surgical Unit : Diode
CE Device – Class IIb medical Device
FDA Device – 79 GEX Class II Medical Device
CDHR Laser – Class IV (4) Laser

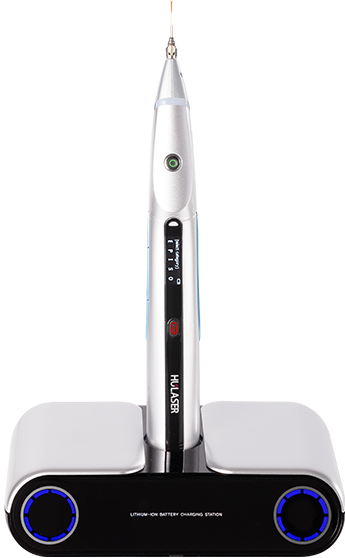

Product layout – K2 Mobile
Specification – K2 Mobile
| Size (L x D x H) (without tip) | 205mm x 25mm x 30mm | Operating(temperature) | 10ºC ~ 40ºC |
|---|---|---|---|
| Weight | 135g, with battery inside | Storing(temperature) | 0ºC ~ 50ºC |
| Medium | GaAlAs | Operating(humidity) | 30 ~ 75% (non-condensing) |
| Wavelength | 980nm±10nm | Storing(humidity) | 10 ~ 90% (non-condensing) |
| Max output power | 3.5 W(CW) | Operating(pressure) | 700hPa ~ 1060hPa |
| Max peak power | 6.0 W(Pulse) | Storing(Pressure) | 700hPa ~ 1060hPa |
| Emission mode | CW/Pulse mode | Rate operating altitude | ≤3000m |
| Aiming Beam | 635nm Laser diode, max 5 mW |
Product layout – Charging station
Specification – battery charger and cradle
| Dimensions | 160 x 90 x 49mm( W x H x D) | Recharge time (When fully discharged) |
3 hours |
|---|---|---|---|
| Weight | 227g | ||
| Voltage Input | 100~240V, 47~63Hz | Communication | LED charging indicator |
| Battery | Lithium Ion 3.6v 1900mAh | Port | 4 battery charging port |
